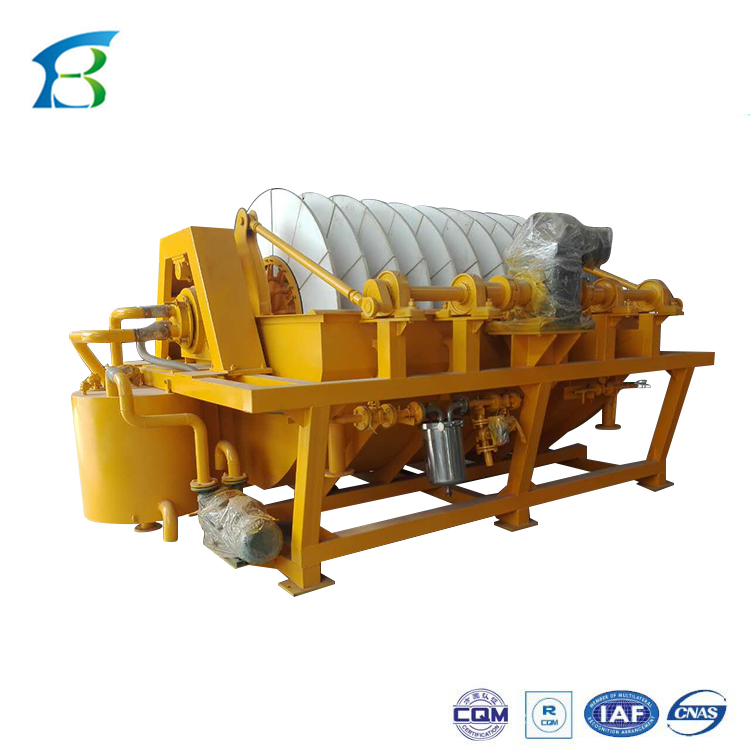

Advanced Ceramic Disk Vacuum Filter for Mining Industry Exported to USA and South Korea

Name: Advanced Ceramic Disk Vacuum Filter for Mining Industry Exported to USA and South Korea
Brand: Better
Price: 6 USD

China Advanced Ceramic Disk Vacuum Filter for Mining Industry Exported to USA and South Korea wholesale

Condition : New

Applicable Industries : Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising C

Showroom Location : Egypt, Philippines, Kenya, Argentina

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : New Product 2020

Warranty of core components : 1 Year

Core Components : burner

Place of Origin : Shandong, China

Brand Name : Better

Warranty : 1 Year

Productivity : 2000L/Hour

Treatment capacity : 1-30tons/h

Filter area : 2-60m2

Certificate : ISO9001:2008,CE

Material : Q235carbon steel with anti-corrosion paint; 304/316SUS

After Warranty Service : Video technical support, Online support, Spare parts, Field maintenance and repair service

Local Service Location : Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea

After-sales Service Provided : Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Free spare parts, Online support

Packaging Details : container/ three ply-wood case

Port : Qingdao

Supply Ability : 50 Set/Sets per Month

Price : $6,500.00/sets 1-1 sets

MOQ : 1

Contact Now

Advanced Ceramic Disk Vacuum Filter for Mining Industry Exported to USA and South Korea

Product Overview

Ceramic filter is mainly used for fine coal slurry recovery, equipped with an engine base, under the engine base setting a fine coal slurry liquid trough, in this liquid trough, equipped with liquid level controller, both ends with negative pressure water tank, one side of this water tank is equipped with negative pressure connected assembly fix, another side is vacuum pump pipeline connecting with a vacuum pump; on the engine base, there is a coal slurry recovery rotor, this rotor consists of main axle, multilevel ceramic filter disc, stripper plate, multisection effluent connecting pipeline piping support plate, negative pressure connecting assembly plate.

The rotor is located in liquid trough; the ceramic filter disc consists of many ceramic cavity micropore plates, those plates located in a same axes connect by the effluent connecting pipeline.

Main Structure

Ceramic filter is mainly consisting of roller system, mixing system, ore slurry feed and discharge system, vacuum system, filtrate discharging system, scraping system, back washing system, united washing system (ultrasonic cleaning, automatic matching acid cleaning), full-automatic control system, trough body, rack etc.

Technology Parameter

model	filters plate(circle)	plate qual.(block)	tank volume(m3)	installed power	operating power	size(m)(LWH)
BTC-1	1	12	0.4	7.6	6.6	2.21.951.63
BTC-4	2	24	0.79	9	7.32	2.452.251.83
BTC-6	3	36	0.94	10.5	7.98	2.72.251.83
BTC-8	4	48	1.28	11.5	8.14	3.042.251.83
BTC-12	6	72	1.79	13	7.96	3.62.251.83
BTC-24	8	96	3.96	23	16.28	4.452.852.25
BTC-30	10	120	4.6	25.15	17.95	5.12.852.24
BTC-45	10	120	5.9	40	30.4	5.73.22.5
BTC-60	14	168	8.1	43.81	30.37	6.823.22.5

Advanced Ceramic Disk Vacuum Filter for Mining Industry Exported to USA and South Korea

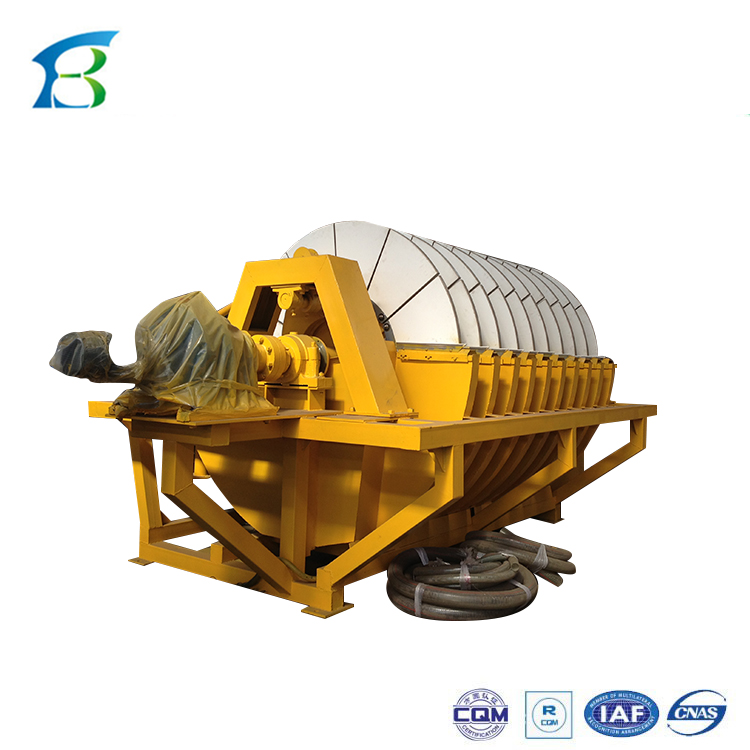

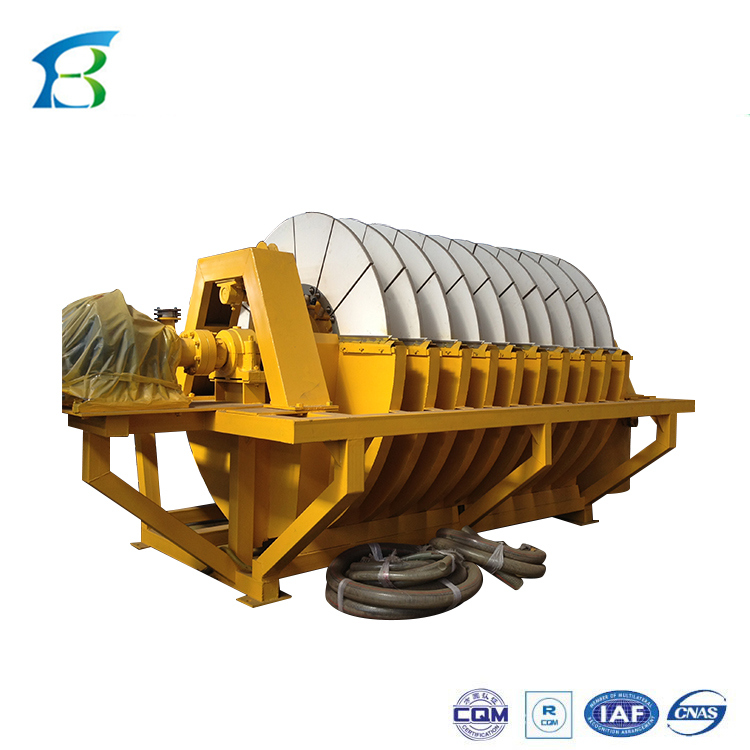

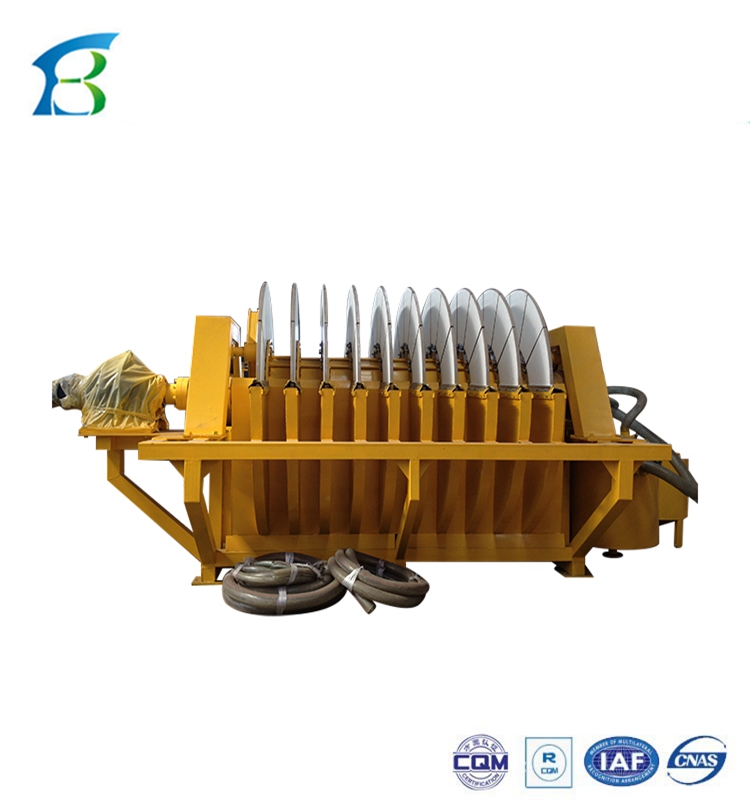

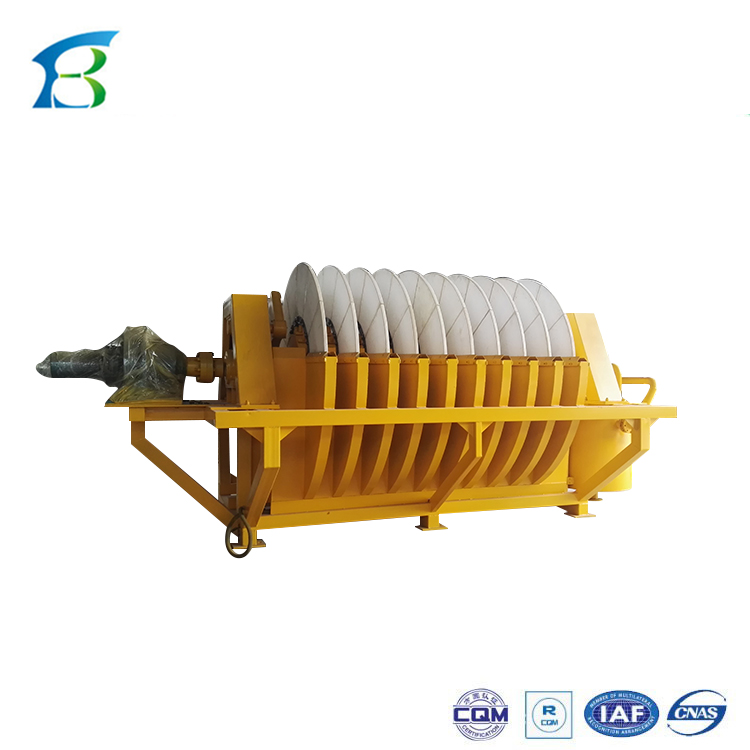

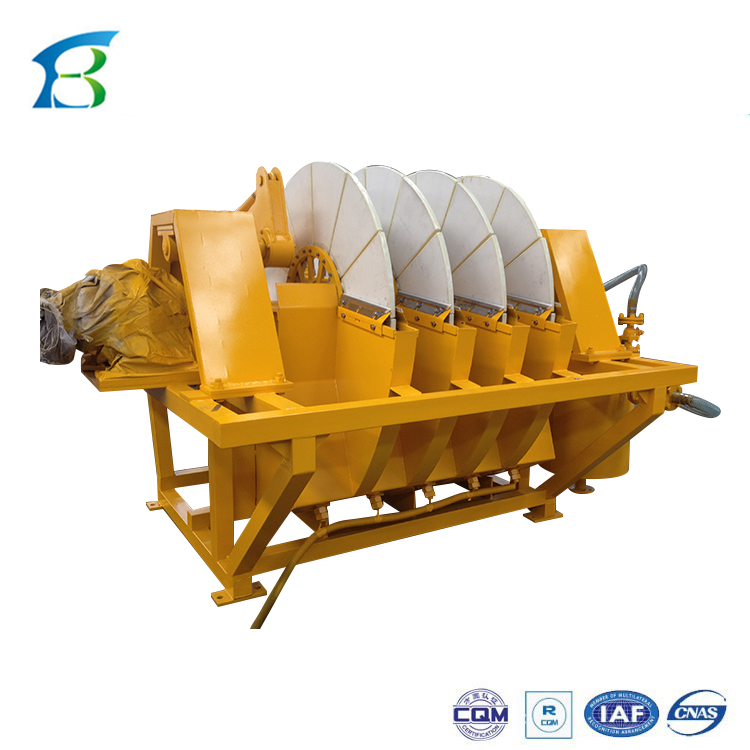

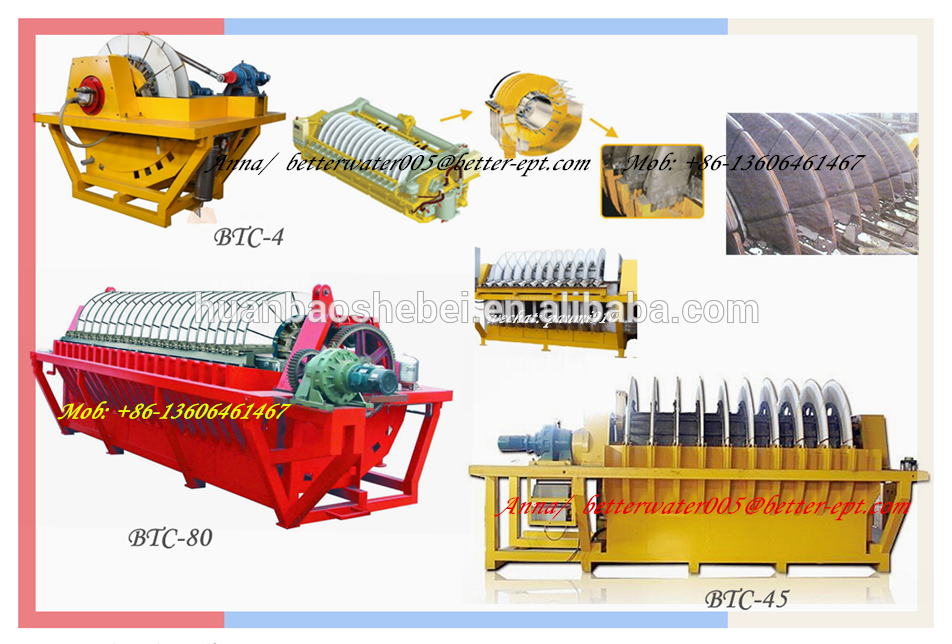

Detailed Images

All Details>>> Click me! @ Email Us!

Advanced Ceramic Disk Vacuum Filter for Mining Industry Exported to USA and South Korea

Advanced Ceramic Disk Vacuum Filter for Mining Industry Exported to USA and South Korea Images
