Dissolved Air Flotation Technology for Customized Wastewater Treatment Solutions

Name: Dissolved Air Flotation Technology for Customized Wastewater Treatment Solutions
Brand: Better
Price: 6 USD

China Dissolved Air Flotation Technology for Customized Wastewater Treatment Solutions wholesale

Condition : New

Applicable Industries : Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising C

Showroom Location : Egypt, United Kingdom, Italy, Germany, Philippines, Morocco, Kenya, South Korea, Algeria, Sri Lanka, Bangladesh, South Africa

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : New Product 2022

Warranty of core components : 1 Year

Core Components : Gearbox, Pressure vessel, Pump, Gear, Bearing, Engine, Motor, PLC

Place of Origin : Shandong, China

Brand Name : Better

Material : Container

Weight : According to your order

Size : According to your order, Customized Size

Power : 0.55kw

Warranty : 1 Year

Productivity : 4-20m3/h

Weight (KG) : 3000 kg

Capacity : 4-20m3/h

After Warranty Service : Online support

Certification : CE ISO

Technology : Air flotation

Brand : Better

Model : YW

Product name : Dissolved air flotation machine

Color : Customized Color

Origin : Shandong,China

Packaging Details : Standard Seaworthy Package or Customized.

Port : Qingdao

Supply Ability : 300 Set/Sets per Year

Price : $6,000.00/sets 1-1 sets

MOQ : 1

Contact Now

Dissolved Air Flotation Technology for Customized Wastewater Treatment Solutions

Product Description

YW series Dissolved Air Floatation is mainly for solid-liquid or liquid-liquid separation. Large sum of micro bubbles produced by dissolving and releasing system adhere to solid or liquid particles with same density as waste water to make the whole float to the surface thus achieve the aim of solid-liquid or liquid-liquid separation.

Product performance

1.The DAF machine relies on a large number of micro-bubbles to remove the flocculation of the adhesion reaction, so the flocculation requirements are not high, which can reduce the flocculation time and save the flocculation agent. 2.High yield per unit area, small pool capacity and floor area,saving land and cost. 3.Convenient sludge discharge, low water consumption; low moisture content of sludge. 4.Shallow tank body depth, simple tank structure. The machine can be opened and stopped at any time according to the situation and the actual needs, without affecting the water quality,easy operation and maintenance.

Structure

1.Air dissolving system

(Dissolved air pump

Air compressor

Dissolved air tank

Release)

2.Air flotation tank

3.Scraping system

(Foam scraper reducer

Chain

Scraping board)

Technical parameter

Model	Capacity	Air water amount(m³/h)	Air pump(kw)	Foam scraper power(kw)	Air compressor power(kw)	Air tank size(mm)	Dimension(mm)
YW-5	4-5	1.5-2	3	0.55	1.5	400×1000	3300×1800×2200
YW-10	8-10	2-3	4	0.55	1.5	500×1512	4000×2100×2200
YW-15	10-15	4-6	7.5	0.55	1.5	500×1512	4400×2100×2200
YW-20	15-20	5-7	7.5	0.55	1.5	500×1512	4600×2400×2200
YW-30	20-30	6-10	7.5	0.75	1.5	500×1512	5200×2600×2400
YW-40	30-40	8-13	7.5	0.75	1.5	600×1880	6000×2600×2400
YW-50	40-50	15-20	7.5	0.75	2.2	600×1880	7000×2600×2400
YW-60	50-60	18-27	11	0.75	2.2	600×1880	7600×2800×2400
YW-70	60-70	22-30	11	0.75	2.2	650×2034	8400×2800×2400
YW-80	70-80	24-32	11	1.1	2.2	650×2034	9200×2800×2400
YW-100	90-100	30-35	15	1.1	3	700×1980	10000×2800×2600
YW-150	125-150	60-80	22	1.1	4	800×1980	13500×2800×2600
YW-200	175-200	80-100	30	1.1	5.5	800×2100	15800×2800×2600
YW-250	225-250	110-120	37	1.1	5.5	800×2400	18000×2800×2600
YW-300	280-300	120-180	37	1.1	5.5	1000×2900	19200×3400×2800

Our workshop

Packing & Delivery

Company Profile

Customers from different countries

FAQ

1. who are we?
We are based in Shandong, China, start from 2009,sell to Domestic Market(62.00%),Southeast Asia(10.00%),South America(9.00%),Africa(8.00%),Mid East(3.00%),South Asia(2.00%),Southern Europe(2.00%),Eastern Asia(2.00%),Central America(2.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Sewage Treatment Equipment; Waste Incinerator; Sludge Dewater Machine; Organic Waste Aerobic Compost Machine

4. why should you buy from us not from other suppliers?
We have the strong ability of environmental protection equipment manufacture and design.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,French

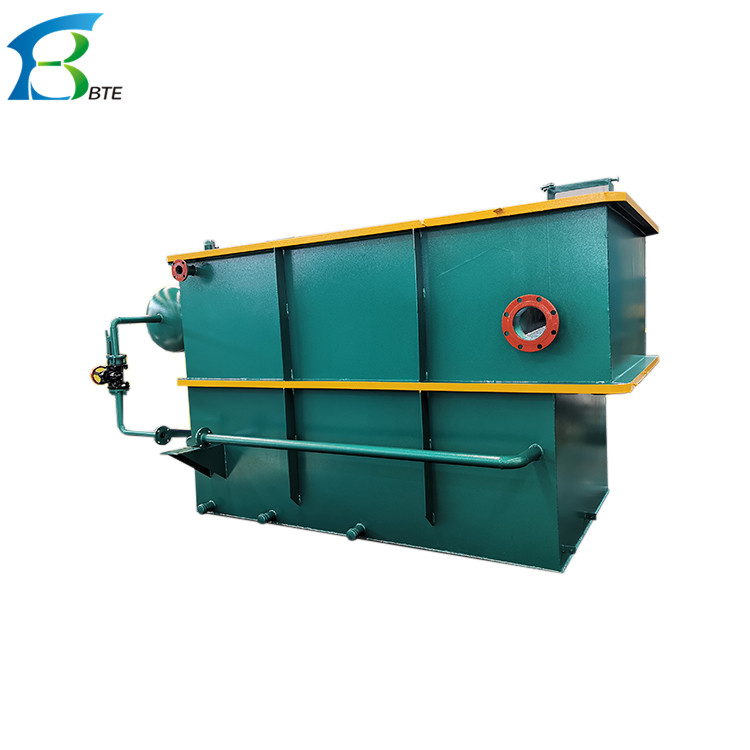

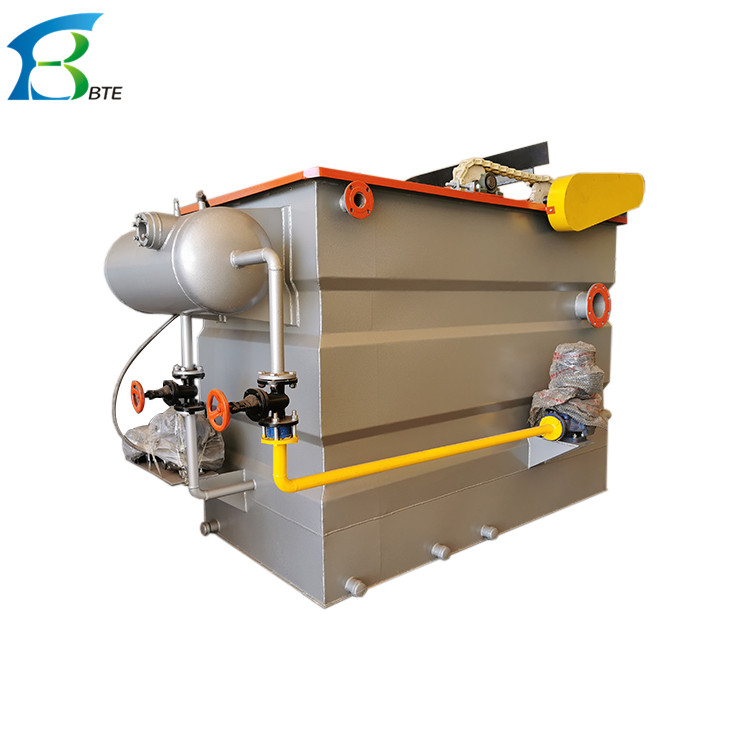

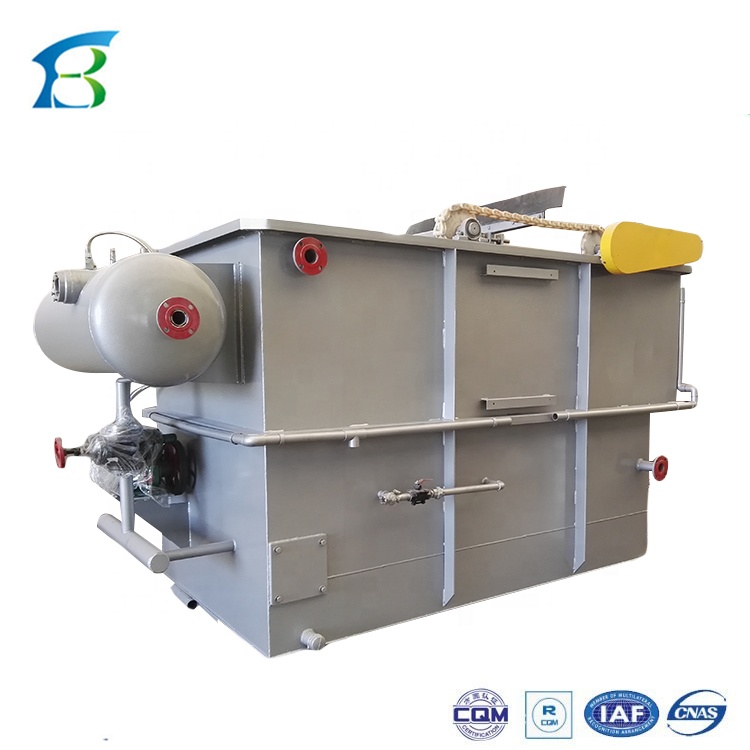

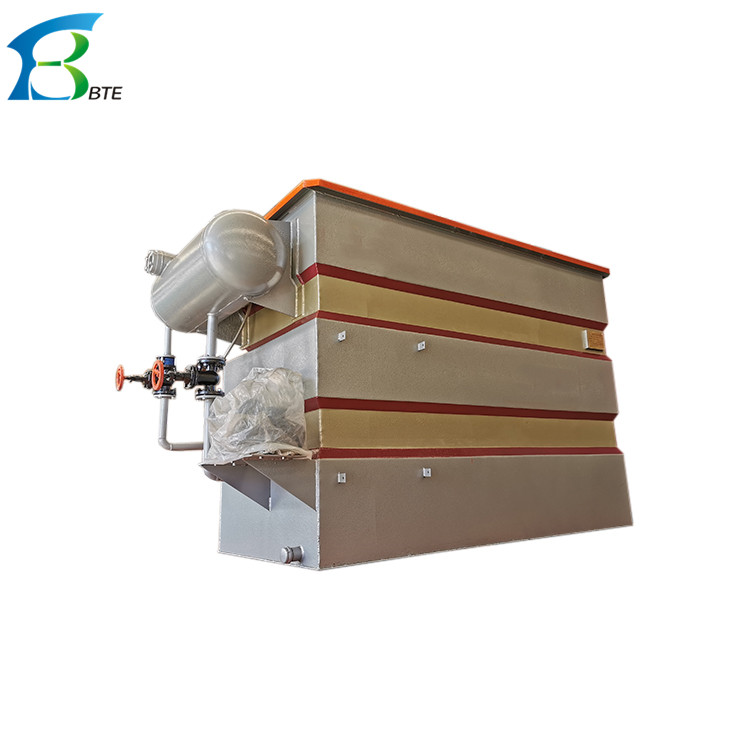

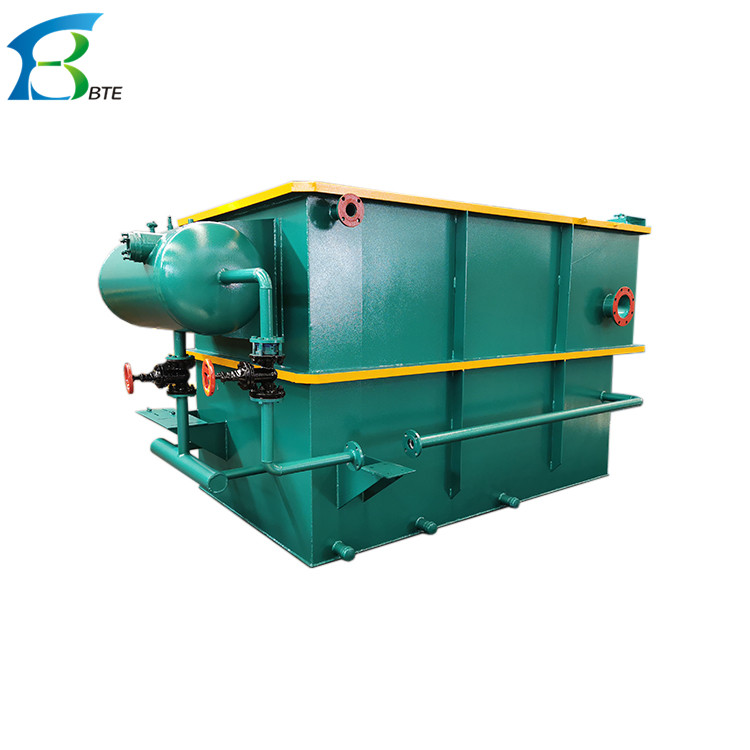

Dissolved Air Flotation Technology for Customized Wastewater Treatment Solutions Images
