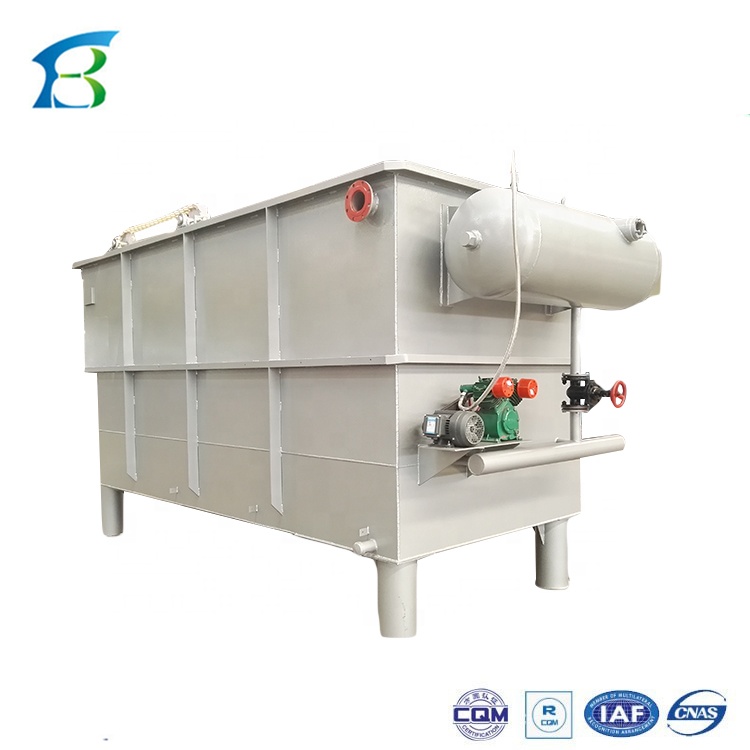

YW Dissolved Air Flotation for Domestic Wastewater in Packaged Water Treatment Unit

Name: YW Dissolved Air Flotation for Domestic Wastewater in Packaged Water Treatment Unit
Brand: Better
Price: 6 USD

China YW Dissolved Air Flotation for Domestic Wastewater in Packaged Water Treatment Unit wholesale

Condition : New

Applicable Industries : Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising C

Showroom Location : Egypt, Canada, Turkey, United Kingdom, Germany, Viet Nam, Philippines, Brazil, Russia, Spain, Thailand, Morocco, Kenya, South Korea, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : New Product 2022

Warranty of core components : 1 Year

Core Components : Gearbox, Pressure vessel, Pump, Gear, Bearing, Engine, Motor, PLC

Place of Origin : Shandong, China

Brand Name : Better

Material : Container, Carbon steel or stainless steel

Weight : Depends on capacity

Size : Depends on capacity

Power : 0.75kw

Warranty : 1 Year

Productivity : 20-70m3/h

Weight (KG) : 5000 kg

Product name : Dissolved Air Flotation

Capacity : 20-70m3/h

After sales service : Online support

Certification : CE ISO

Brand : Better

Model : YW

Origin : China

Color : Customized Color

Packaging Details : Standard Seaworthy Package or Customized.

Port : Qingdao

Supply Ability : 300 Set/Sets per Year

Price : $6,300.00/sets 1-1 sets

MOQ : 1

Contact Now

YW Dissolved Air Flotation for Domestic Wastewater in Packaged Water Treatment Unit

Product Description

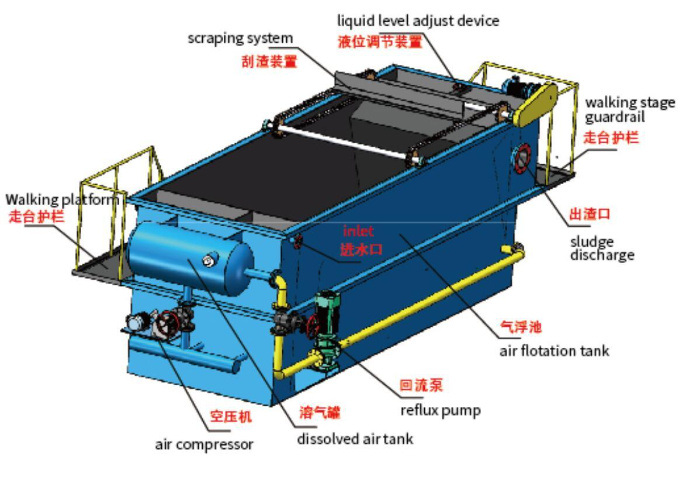

YW series Dissolved Air Flotation Machine is mainly used for solid-liquid separation. Large sum of micro bubbles produced by dissolving and releasing system adhere to solid or liquid particles which with the same density as wastewater to make the whole float to the surface thus achieve the goal of separation.

Model	Capacity(m³/h)	Main motor power(KW)	Foam scraper power(KW)	Air compressor power(KW)	Overall dimension(mm)
YW-5	4-5	3	0.37	1.5	3300x1800x2200
YW-10	8-10	3	0.37	1.5	4000x2100x2200
YW-20	15-20	7.5	0.37	1.5	4600x2400x2200
YW-30	20-30	7.5	0.37	1.5	5200x2600x2400
YW-40	30-40	7.5	0.55	1.5	6000x2600x2400
YW-50	40-50	7.5	0.55	1.5	7000x2600x2400

Features of DAF
1).Design treatment capacity:5-300 m3/h.
2).High-rate clarifier for high SS water (light particles, oil and colloid).
3).Fully(100%) manufactured in the factory, and no need secondary welding. It costs 3h for 2 manpower to assemble.
4).Indoor or outdoor layout (environmental temperature should be over 0°C).
5).Apply to automatic & continuous operation.
6).Design life: Carbon steel material:>10years;
304 Stainless steel material:>20years.
316 Stainless steel material:>25 years

Testing

Loading site

Business case

Application

1) Separating small particles and algae in groundwater.
2) Recovering valuable matters in industrial sewage such as paper pulp.
3) Acting as secondary sedimentation tank to separate and concentrate suspended particles and sludge.

Certifications

Company Profile

Company profile

Founded in 2006,specialized in technical research and development,production ,design of wastewater treatment equipment,solid-liquid separation and incinerators.

FAQ

1.Q:Are you a factory or trading company?
A: We are a direct factory, we have rich experiences for manufacturing waste treatment plants for more than 14 years.
2.Q:Where is your factory ? How can i visit there?
A: Our factory is located in No.1137, Zhucheng city, Shandong Province, China. It is about 2 hours from Qingdao airport. We can pick you up if you need, welcome to visit our factory.
3.Q: Do you have minimum order quantity request?
A: No minimum order, but it can get a discount if you order a large quantity.
4.Q: Do you have certificates?
A: Yes, we have ISO,SGS certificate.
5.Q: Can you meet my special requirements for my products?
A: Yes, we have a professional design team. Drawings can be provided according to your requirements.
6. Q:How do I buy your products?
A:You can provide us your water sources, water quality, flow rate and ground area (contact us for more details).
7. Q:How do I pay?
A: TT and L/C are acceptable and TT will be more appreciated. 30% paid for deposit by T/T before production, 70% balance to be paid by TT before shipment.
8. Q:What is the delivery time?
A: It would largely depend on the quantity of order and the item you want.. Generally speaking, the delivery time will be within 4 to 6 weeks.
9. Q: How do you pack the products?
A: We use standard package. If you have special package requirements, we will pack as required, but the fees will be paid by customers.
10. Q: How do you keep your equipment from corrosion?
A: We use the world-famous paint, like SigmaCoatings, PainBow,etc. What's more, we paint strictly according to the standard process.
11. Q: How do you manufacture your equipment ?
A:Our machining technology includes laser/plasma cutting, automatic welding,CNC cutting and bending.
12. Q:How do we install after the equipment arriving destination?
A: Detailed installation drawing can be provided for you. If it is necessary, we will send technicians to help you. However, the visa fee, air tickets, accommodation, wages will be paid by buyers.
